Frame CNC automatic polishing machine

Short Description:

Brand: gold casting machinery
Power supply voltage: 380V-50Hz
Total power: 14kw
Main motor: 4kw
Work station: 4 (customizable)
Polishing consumables: hemp wheel
Processing fixture: customized products
Spindle speed: 2800r / min
Air source used: 0.55mpa
Equipment installation dimension: subject to the actual installation

Product Detail

Product Tags

Main purpose

The machine mainly grinds and polishes the frame of the product. The machine can be customized according to the process needs and output of customers. The frame NC polishing machine is designed with two groups of polishing grinding heads. It can polish four products at one time, which can completely replace manual polishing. It has high working efficiency and uniform polishing effect.

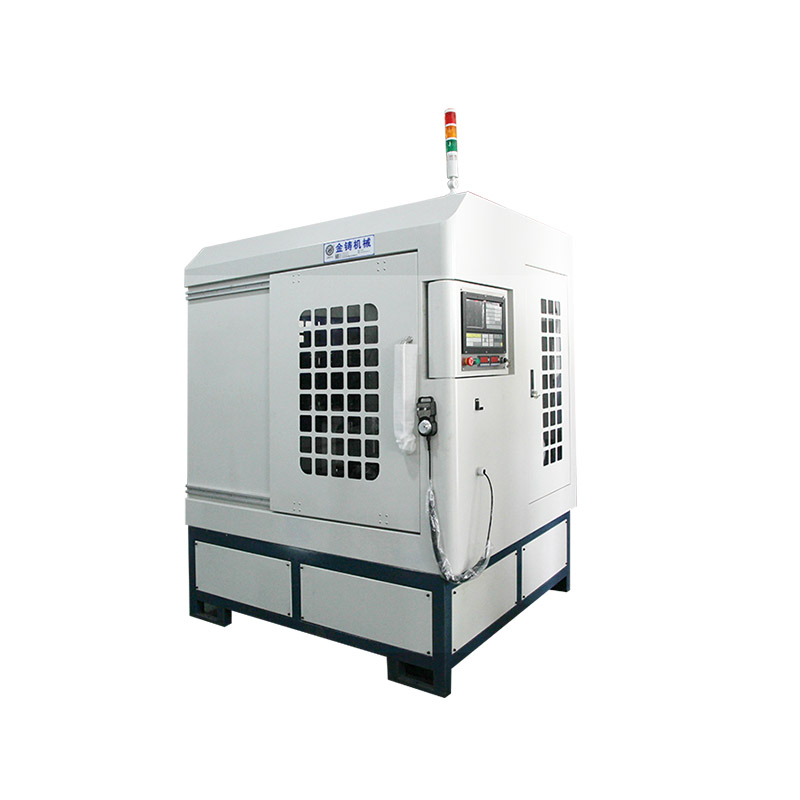

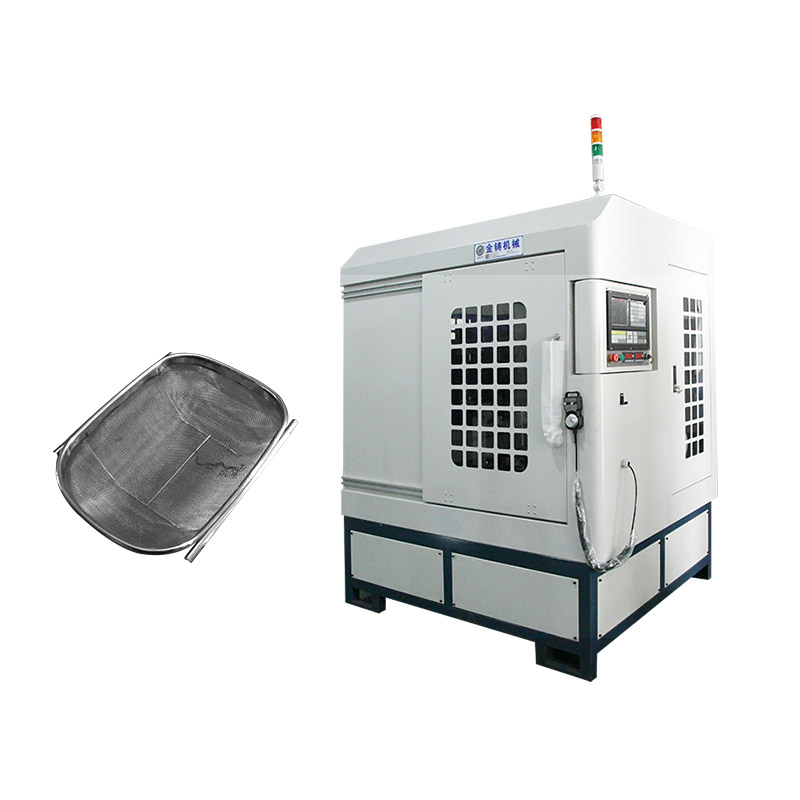

Product Picture


Key Features


380v/ 50Hz / Adjustable


As actual


As actual

Size of Consumable:

φ250*50mm / Adjustable

Main Motor:

3kw / Adjustable

Consumable Lifting

100mm / Adjustable


5~20s/ Adjustable

Air Sourcing:

0.55MPa / Adjustable

Speed of Shaft:

3000r/min / Adjustable


4 - 20 jobs / Adjustable



Consumable swinging

0~40mm / Adjustable


A 16-year continuous research and development has cultivated a design team that dares to think and can be implemented. All of them are undergraduate automation majors. The excellent professional skills and the platform we provide make them feel like a duck to water in the industries and fields they are familiar with. , Full of passion and energy, it is the driving force for the sustainable development of our enterprise.

Through the unremitting efforts of the team, it has provided complete solutions for customers in more than 30 countries and regions around the world. In the process of customizing the disc machine, it has kept improving, and has obtained 102 national patents, and has achieved remarkable results. We are still on the road, self-improving, so that our company has always been an innovative leader in the polishing industry.

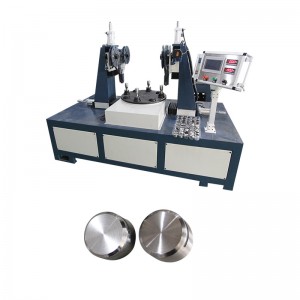

The application field of this disc polishing machine is very wide, covering tableware, bathroom, lamps, hardware and other special-shaped products, and our equipment can achieve the desired polishing by realizing the rotation of the table and the precise positioning of the polishing wheel. The effect, the polishing time and the number of rotations at the same time can be achieved by adjusting the parameters through the CNC panel, which is very flexible and can meet various requirements.
