Automatic polishing machine for handle top

Short Description:

Brand of automatic polishing machine for handle top: gold casting machinery
Power supply voltage: 380V-50Hz
Total power: 14kw
Main motor: 4kw
Work stations: 32 (customizable)
Polishing consumables: blade wheel
Processing fixture: customized products
Spindle speed: 2650r / min
Air source used: 0.55mpa
Equipment installation dimension: subject to the actual installation


Product Detail

Product Tags

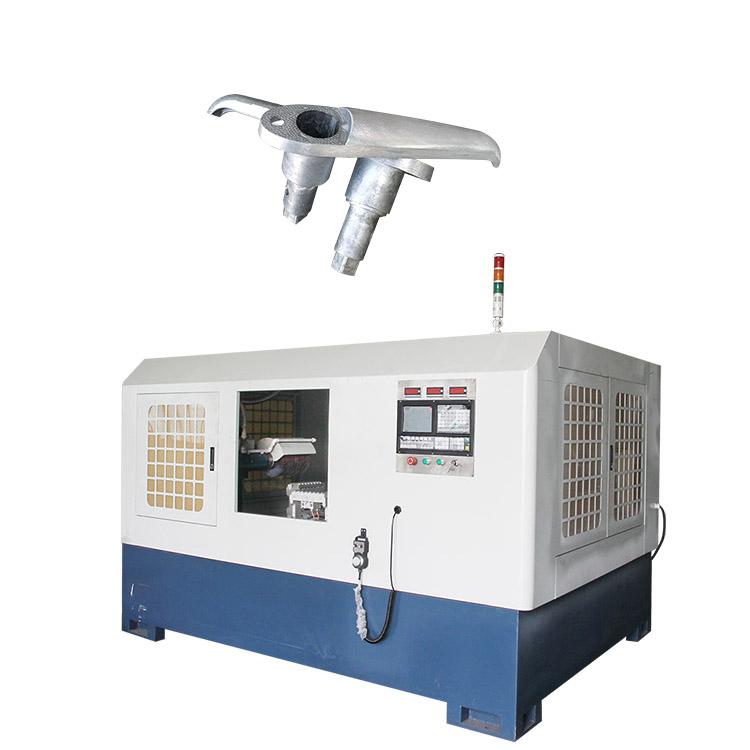

Main purpose

The machine mainly carries out automatic grinding and polishing on the top of aluminum handle. The whole machine is designed with 4 groups of grinding wheel groups, and the workbench is disc type,
32 products can be polished at one time. The working efficiency of the whole machine is high, which can greatly improve the production efficiency of the enterprise.

Product Picture

2.把手顶部自动抛光机
6.抽尘设备
3.把手顶部自动抛光机
9.抽尘口

Key Features

Voltage:

380v/ 50Hz / Adjustable

Dimension:

As actual

Power:

As actual

Size of Consumable:

φ250*50mm / Adjustable

Main Motor:

3kw / Adjustable

Consumable Lifting

100mm / Adjustable

Intermittent:

5~20s/ Adjustable

Air Sourcing:

0.55MPa / Adjustable

Speed of Shaft:

3000r/min / Adjustable

Jobs

4 - 20 jobs / Adjustable

Waxing:

Automatic

Consumable swinging

0~40mm / Adjustable



A 16-year continuous research and development has cultivated a design team that dares to think and can be implemented. All of them are undergraduate automation majors. The excellent professional skills and the platform we provide make them feel like a duck to water in the industries and fields they are familiar with. , Full of passion and energy, it is the driving force for the sustainable development of our enterprise.

Through the unremitting efforts of the team, it has provided complete solutions for customers in more than 30 countries and regions around the world. In the process of customizing the disc machine, it has kept improving, and has obtained 102 national patents, and has achieved remarkable results. We are still on the road, self-improving, so that our company has always been an innovative leader in the polishing industry.

The application field of this disc polishing machine is very wide, covering tableware, bathroom, lamps, hardware and other special-shaped products, and our equipment can achieve the desired polishing by realizing the rotation of the table and the precise positioning of the polishing wheel. The effect, the polishing time and the number of rotations at the same time can be achieved by adjusting the parameters through the CNC panel, which is very flexible and can meet various requirements.
