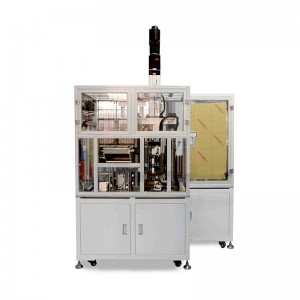

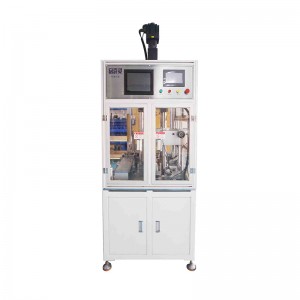

Servoine press machine

Short Description:

The Jiajia Ling servo press is driven by an AC servo motor. The rotation force is changed to the vertical direction by a high-precision ball screw, and the pressure sensor management pressure loaded on the front end of the drive site is rely on the encoder control management speed position. At the same time, a pressure is applied to the working object to achieve the device of the processing purpose.

It can control the pressure, stop position, drive speed, and stop time. It is possible to realize the full process closed loop control of the pressing force and the press-in depth in the pressure assembly operation, and the entire pressing process is divided into fast forward, probe, press, pressure, and return five stages.



Product Model: • C-type servo press • S-type servo press • Desktop servo press


Product Detail

Product Tags

S-type servo press

Model Maximum pressure (KN) Frequent trip (mm) Force resolution (mm) Displacement resolution (mm) Weight is about (kg) Maximum speed (mm / s) Repair speed (mm / s) Pressure range (KN) Boot time (s) Positioning accuracy (mm) Pressure accuracy (% F.S) Closed mode height (mm) Throat (mm) Appearance size * width * height (mm)
PJL-S/10KN -200mm/100v 10 200 0.005 0.001 300 100 0.01-35 50N-10KN 0.1-200 ±0.01 0.5 350 225 600*450*2120
PJL-S/20KN -200mm/125V 20 200 0.005 0.001 350 125 0.01-35 100N-20KN 0.1-200 ±0.01 0.5 350 225 600*636*2100
PJL-S/30KN -200mm/125V 30 200 0.005 0.001 380 125 0.01-35 150N-30KN 0.1-200 ±0.01 0.5 350 250 700*500*2300
PJL-S/50KN -150mm/125V 50 150 0.005 0.001 600 125 0.01-35 250N-50KN 0.1-200 ±0.01 0.5 350 250 700*500*2330
PJL-S/100KN -150mm/125V 100 150 0.005 0.001 650 125 0.01-35 500N-100KN 0.1-200 ±0.01 0.5 350 300 760*900*2550
PJL-S/200KN -150mm/80V 200 150 0.005 0.001 800 80 0.01-20 1000N-200KN 0.1-200 ±0.01 0.5 350 300 800*950*2750

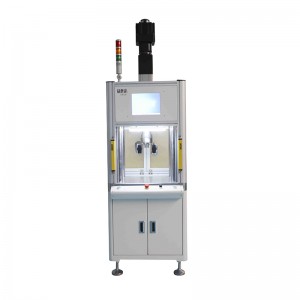

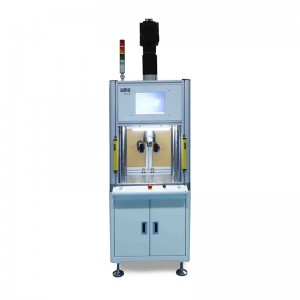

S-type servo press (5)
S-type servo press (1)

C-type servo press

Model Maximum pressure (KN) Frequent trip (mm) Force resolution (mm) Displacement resolution (mm) Weight is about (kg) Maximum speed (mm / s) Repair speed (mm / s) Pressure range (KN) Boot time (s) Positioning accuracy (mm) Pressure accuracy (% F.S) Closed mode height (mm) Throat (mm) Appearance size * width * height (mm)
PJL-C/5KN -100mm/150v 5 100 0.005 0.001 200 150 0.01-35 25N-5KN 0.1-200 ±0.01 0.5 250 120 580*560*1900
PJL-C/10KN -100mm/100v 10 100 0.005 0.001 260 100 0.01-35 25N-10KN 0.1-200 ±0.01 0.5 250 120 545*635*2100
PJL-C/2KN -100mm/125v 20 100 0.005 0.001 280 125 0.01-35 100N-20KN 0.1-200 ±0.01 0.5 250 120 545*536*2100

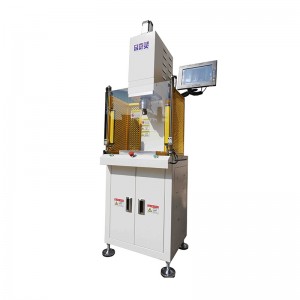

C-type servo press (1)
C-type servo press (3)

Desktop servo press

Model Maximum pressure (KN) Frequent trip (mm) Force resolution (mm) Displacement resolution (mm) Weight is about (kg) Maximum speed (mm / s) Repair speed (mm / s) Pressure range (KN) Boot time (s) Positioning accuracy (mm) Pressure accuracy (% F.S) Closed mode height (mm) Throat (mm)
PJL-C-0.5T/1T/2T 0.5/1/2 100-150 0.005 0.001 80 150 0.01-35 25N-5KN 0.1-200 ±0.01 0.5 250 120

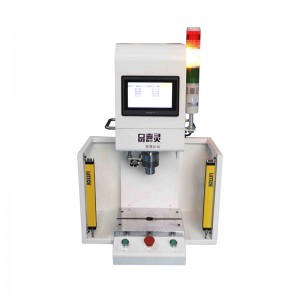

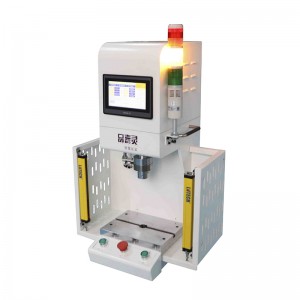

Desktop servo press (1)
Desktop servo press (2)

Advantage

ISO9001, TS16949 and other standard requirements.

The main board is connected to the computer host, data storage, upload faster, realizing product press data.

Press system control

1. High equipment precision, efficient energy-saving and environmental protection.

2. Voltage pressure mode is diverse: optional pressure control, position control, multi-segment control.

3. Software real-time acquisition, analysis, record storage compressed data, data acquisition frequency is up to 1000 times / sec.

4. The software has an envelope function, which can set the product load range or displacement range as required. If real-time data do not automatically alarm within the scope, 100% real-time recognition of bad products, and realize online quality control.

5. The device configures the computer host, the Windows operating system, the press control system operation interface in English free to switch.

6. Specify the optimized pressing process according to the specific product requirements.

7. With complete, accurate job procedure record, analysis function. (The curve has functions that amplify, traversal, etc.)

8. Multiple data format export, Excel, Word, data easy to import SPC and other data analysis systems.

9. Self-diagnosis function: equipment failure, servo press can display error message, and prompt the solution, convenient find out the problem quickly and resolve.

10. Multi-function I / O communication interface: through this interface can be communicated with external equipment, easy to fully automate.

Application Field

• Automotive engine, transmission shaft, steering gear, etc.

• Electronic products precision press

• Imaging technology core components precision press

• Motor bearing precision press application

• Precision pressure detection such as spring performance test

• Automated assembly line application

• Aerospace core component press application

• Medical, electric tool assembly assembly

• Other occasions that require precision pressure assembly

Design Features

Equipment main body: is the four-pillar structure rack, the workbench is the solid board, the body is used by aluminum profile frame plus acrylic plate, the base uses a high-strength welding frame to add a plate paint; carbon steel metal plating hard chrome, painted oil Waiting for rust treatment. Body structure: The use of four column structures, simple and reliable, strong load carrying capacity, small bearing deformation, is one of the most stable and widely used fuselage agencies.
