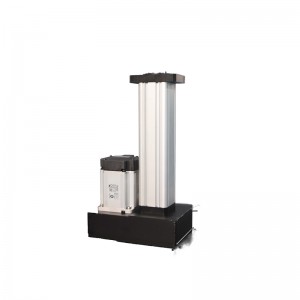

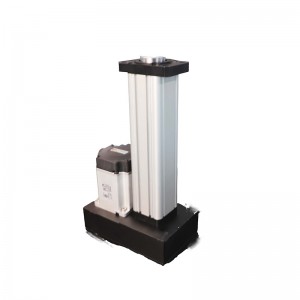

High precision electric servo cylinder for fin press

Short Description:

Servo electric cylinder performance

The electric cylinder integrates an AC servo motor, servo drive, high-precision ball screw, modular design, etc. The entire electric cylinder has the characteristics of compact structure, small inertia, fast response, low noise and long life. The servo motor is directly connected to the transmission screw of the electric cylinder, so that the encoder of the servo motor directly feeds back the displacement amount of the motor cylinder moving the piston, and reduces the intermediate link.


Product Detail

Product Tags

The inertia and gap improving control and control accuracy. The servo motor is connected to the electric cylinder, easy to install, simple, easy to use, the main components of the electric cylinder use domestic and foreign brand products, the performance is stable, low, and reliable.

Load(KN) Capacity(KW) Reduction Travelling(mm) Rated speed(mm/s) Tolerance of Repositioning(mm)

5

0.75

2.1

5

200

±0.01

10

0.75

4.1

5

100

±0.01

20

2

4.1

10

125

±0.01

50

4.4

4.1

10

125

±0.01

100

7.5

8.1

20

125

±0.01

200

11

8.1

20

80

±0.01

Comparison of servo electric cylinders and traditional hydraulic cylinders and air cylinders



Performance

Electric cylinder

Hydraulic cylinder

Cylinder

Overall comparison

Installation method

simple, plug and play

complex

complex

Environmental requirements

no pollution, environmental protection

frequent oil spills

louder

Security risks

safe, almost no hidden danger

there is an oil leak

gas leak

Energy application

energy saving

large loss

large loss

Life

super long

longer (properly maintained)

longer (properly maintained)

Maintenance

almost maintenance-free

frequent high-cost maintenance

regular high-cost maintenance

Value for money

high

lower

lower

Item-by-item comparison

Speed

very high

medium

very high

Acceleration

very high

higher

very high

Rigidity

very strong

low and unstable

very low

Carrying capacity

very strong

very strong

medium

Anti-shock load capacity

very strong

very strong

stronger

Transfer efficiency

>90%

<50%

<50%

Positioning control

very simple

complex

complex

positioning accuracy

Very high

generally

generally
