What are the main methods of automatic polishing of square tubes?

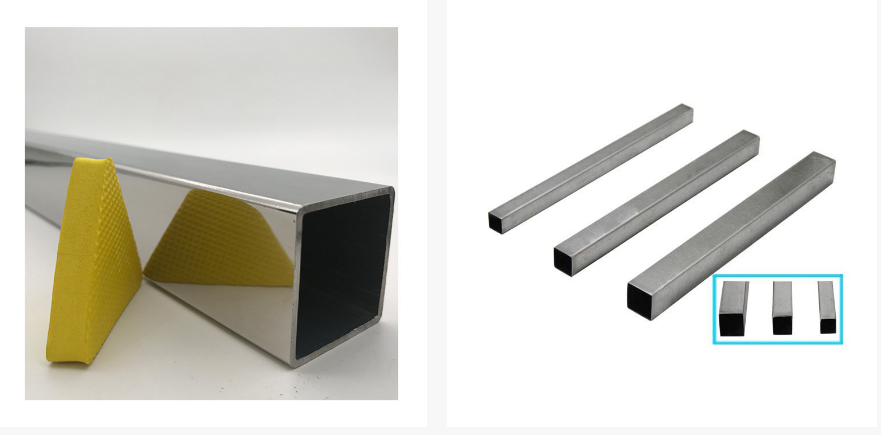

Square tube is the largest type of hardware tube and is widely used in construction, bathroom, decoration and other industries. In the polishing industry, there are also more processing requirements for surface treatment such as square tube polishing and wire drawing. Here is a brief introduction to the main applicable models and their working principles of the three square tube polishing, to provide reference and reference for the majority of related industry personnel.

automatic polishing

Fully automatic conveying square tube polishing machine. Features: High efficiency, the production is completed after passing through the conveying process, but the production of multiple units is required, and the mechanical cost is relatively high. The machine adopts the design principle of the round tube automatic polishing unit, and changes the polishing wheel combination, so that the four polishing heads polished in four directions of each unit stroke can be processed for the four sides of the square tube respectively. Multiple sets are combined to facilitate multiple processes from grinding to finishing. This type of equipment is suitable for processing modes with large production scale and high efficiency requirements.

Rotary double-sided square tube polishing machine. Features: Both sides are polished at the same time, the front and rear strokes are polished back and forth, and more square tubes are polished at the same time, which is more efficient. At the same time, the processing effect is more prominent by back and forth polishing on both sides. The machine is upgraded with a double-sided polishing machine. The upper and lower sides of the square tube are automatically rotated 90° after polishing. The whole process can be polished without manual labor. This kind of machinery is suitable for processing manufacturers with relatively high production efficiency requirements and certain requirements for the polishing effect of products.

Single-sided square tube polishing machine. Features: Only one side of the tube is polished at the same time, and the other side is flipped and polished after completion. The efficiency is relatively low, but the polishing effect is good, and the effect of precision mirror light can be achieved. The machine is upgraded by lengthening the plane polishing machine, the worktable is modified, and the pressing device is added to prevent the polishing process from being deformed due to the excessive pressure of the polishing wheel. It is suitable for production enterprises with low requirements on polishing efficiency and high requirements on surface effect
