As a standard machine independently developed by our company, the abrasive belt water-grinding machine has 6 national patents

As a standard machine independently developed by our company, the abrasive belt water-grinding machine has 6 national patents.

According to the product width and surface treatment process, the abrasive belt water polishing machine has two processing widths of 150mm and 400mm. The number of heads can be configured from 2 to 8 heads. The width & heads could also be customized according to the exact requirement. The key features are stable operation, environmental protection, high safety performance, a wide range of processed products, and high-quality surface treatment.

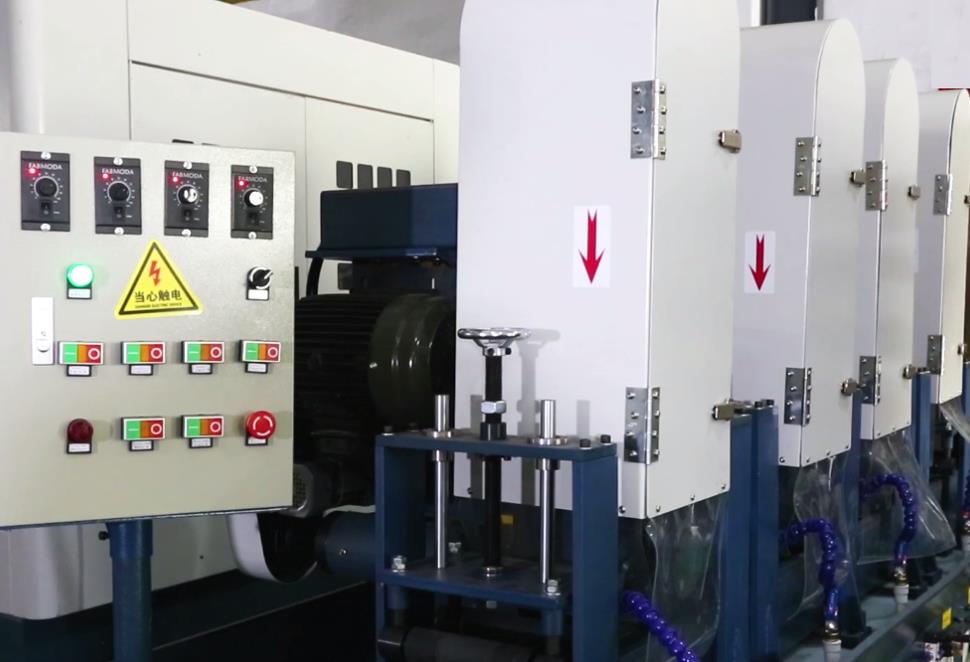

Abrasive belt water polishing machine

Sanding, grinding and wire-drawing for panel products. The abrasive belt water-grinding machine is designed with a spray device, which can cool the panel during the grinding processing, and effectively prevent dust pollution, which plays a role in environmental protection.

For small products, it can also customize a jig, put the product inside jig and hold it, and then transport it on the conveyor belt for processing.

The belt swing function makes the touching between the product and the belt more uniform and achieves a higher-quality finish.

The worktable can also adopt a circulating conveying type to process the products back and forth, which is easy to operate, and also effectively improves work efficiency and cost saving.





Belt water mill

Wire drawing:
Metal wire drawing is a very common decoration method in life. It can be made into straight lines, threads, corrugations, random patterns and spiral patterns. This surface treatment gives people the characteristics of good hand feeling, fine luster and strong wear resistance.

Mirror finish:
The mirror surface treatment of stainless steel is simply to polish the surface of stainless steel. Through seven process steps of rough grinding, secondary rough grinding, semi-fine grinding, fine grinding, secondary fine grinding, semi-gloss, and gloss, different abrasive belts are used. , hemp wheel and cloth wheel are repeatedly polished, and finally the mirror effect of ordinary polishing, ordinary 6K, fine grinding 8K, and super fine grinding 10K is obtained.
Parts in jig.

- It could be tailored
according to the shape
of physical product
Finishes: Mirror, straight, oblique, messy, wavy…
